Memory is one of the most critical resources in SQL Server. It affects query performance, workload efficiency, and overall server stability. As a DBA, understanding how SQL Server uses memory—and how to manage it effectively—can make the difference between a system that runs smoothly and one that is constantly under pressure.
In this guide, we will walk through the basics of SQL Server memory architecture, explore key configuration settings, and cover simple techniques to troubleshoot memory-related issues and their resolutions. Whether you are managing a small instance or supporting enterprise workloads, this article will help you build a solid foundation in memory management—without diving too deep into internals.
Figure-1: Memory Allocation
Key Components of Memory Management
- Buffer Pool - It is the largest part of SQL Server memory which consists of a collection of 8KB buffers to manage memory. It acts like a cache, storing frequently used data pages in memory so SQL Server does not have to read from disk every time. This helps make queries faster. SQL Server manages the buffer pool dynamically, adjusting how much memory it uses depending on the workload.
- Procedure Cache - This is used to store execution plans for repeated queries and stored procedures. This improves performance by avoiding repeated compilations. The cache size is managed dynamically, based on query stats and available memory.
- Memory clerks - It tracks memory use by SQL Server components like the buffer pool, procedure cache, and other internal structures.
- Memory nodes - It represents memory regions tied to different processors (NUMA nodes) in multi-CPU systems.
- External Components - SQL Server memory management also works with external components like the Windows OS and hardware. It uses the Windows memory manager for low-level memory tasks. SQL Server also optimizes memory usage to take full advantage of hardware capabilities.
SQL Server memory architecture
- Typically, SQL Server dynamically acquires and releases memory which ensures that it does not make any OS level memory shortages. It relies on Windows Memory Notification APIs to monitor available memory and adjusts accordingly. So, it release memory when system memory is low, and acquires more when demand increases. If you see a gradual decreases of system memory, this is normal as per SQL Server's dynamic memory management. Do not consider it as memory leak. You can also configure SQL Server's dynamic memory management manually.
- A major design goal of SQL Server is to reduce disk I/O, which is resource-intensive. It uses the buffer pool to store database pages in memory and reduce physical reads/writes and tries to balance:
- Preventing the buffer pool from consuming all system memory
- Minimizing disk I/O by maximizing buffer pool size
- Under heavy load, large queries might fail due to insufficient memory, causing timeouts. You can increase the query wait setting or reduce MAXDOP for parallel queries.
- Memory pressure can lead to:
- Dropping bitmaps in joins/sorts.
- Increasing tempdb usage due to memory spillover.
- Solutions: Add more physical memory or optimize queries for more efficient plans.
Min and Max Server Memory Allocation
- Minimum(MB) - Default is 0 MB. It is the minimum amount of RAM to the SQL Server for the specific instance. During SQL Service startup, it does not allocate whatever memory is specified in the min memory configuration. However, once SQL Server reached that level due to client workload, it can continue committing pages in the memory pool but it cannot free up memory to OS.
- Maximum(MB) - Default value is 2147483647 MB. It is the upper limit of that much memory can be acquired by SQL Server. It will reserve sufficient memory for the SQL Server. The default value allows SQL Server to use as much as the memory required. It might consume almost all OS memory that may result in server performance issue.

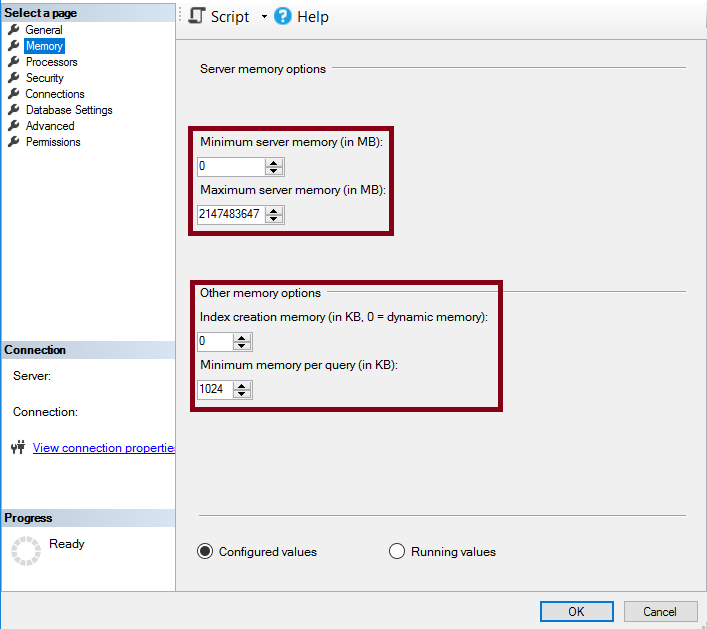

Figure-2: Memory Settings
Best Practices
- Microsoft recommends using dynamic memory configuration with min server memory = 0 and max server memory set to leave room for the OS.
- For systems with 8–16 GB RAM, reserve 2–4 GB for the OS.
- For larger systems, a general rule is to leave 4 GB for every 16 GB of RAM beyond the first 32 GB. You need to adjust this depending on your own system’s needs and memory allocations.
- Brent Ozar's simple "starter" rule of thumb is to leave 4GB or 10% of total memory free, whichever is LARGER on your instance to start with, and adjust this as needed.
- Avoid running other memory-heavy applications on the SQL Server machine. If necessary, estimate their usage and reduce SQL Server’s max memory accordingly.
- On servers with multiple SQL Server instances, configure each instance’s memory carefully to avoid starvation and ensure enough memory remains for the OS and other processes.
You can check and set the min & max memory using below script. These configuration settings take effect immediately and do not require a restart.
-- Check min and max server memory
EXEC sp_configure 'show advanced options', 1;
GO
RECONFIGURE;
GO
EXEC sp_configure 'min server memory';
EXEC sp_configure 'max server memory';
-- Set min and max server memory
USE master;
EXEC sp_configure 'show advanced option', 1;
RECONFIGURE;
exec sp_configure 'min server memory (MB)', 0;
exec sp_configure 'max server memory (MB)', 10240; -- 10GB
RECONFIGURE WITH OVERRIDE;
Minimum memory per query
This guarantees the minimum amount of memory that will be allocated to run a query. This is also called minimum memory grant. Before execution start, a query must wait till the minimum requested memory is secured, or until the value specified in the query wait server configuration option is exceeded. The associated wait type is called RESOURCE_SEMAPHORE. In a busy server, do not set this value too high. You may face:
- increasing competition for memory resources.
- decreasing concurrency by increasing the amount of memory for every single query, even if the required memory at runtime is lower that this configuration.
Outcome of Memory Pressure
Memory can be a problematic bottleneck because a bottleneck in memory will manifest on other resources, and can result in:
- Extra I/Os (such as very active lazy writer background thread)
- Higher recompile ratio
- Longer running queries (if memory grant waits exist)
- Extra CPU cycles
Performance Counters Analysis for Identifying Memory Pressure
Memory and disk I/O are closely related. Even if you you have a memory stress, still you should gather I/O metrics to understand how the system is behaving between the two resources. Let's check some common counters for analyzing memory pressure.

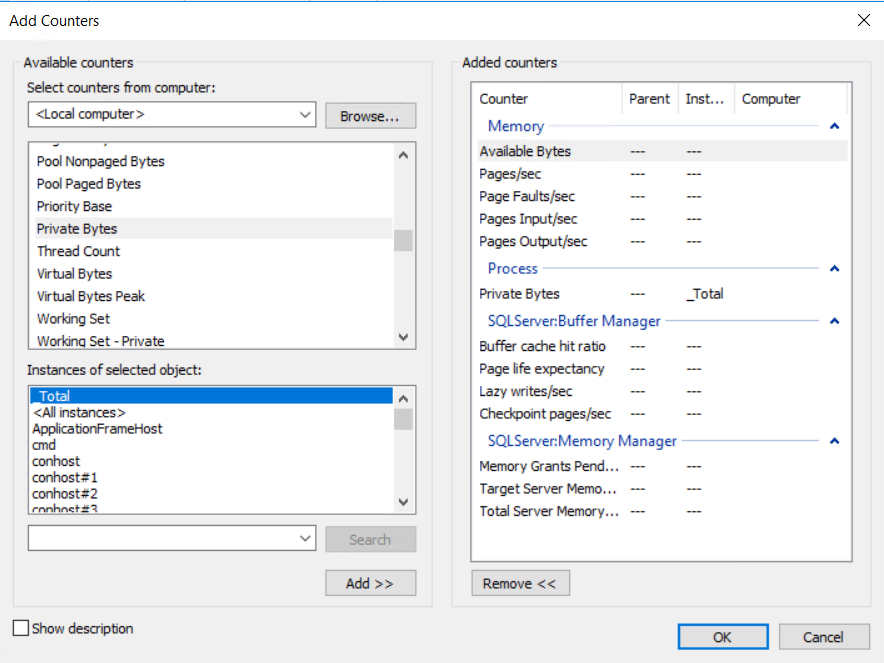

Figure-3: Performance Counter for Identifying Memory Pressure
Available Bytes
This counter shows how much free physical memory is left on the system and should not remain too low for long time. If SQL Server uses dynamic memory, consistently low values without memory adjustments suggest the server is under significant memory pressure.
Pages/Sec and Page Faults/Sec
A page fault occurs when a process requires code or data that is not in its space in physical memory. It may lead to:
- Soft page fault - If the faulted page is found elsewhere in physical memory
- Hard page - If the faulted page is not in the memory and must be retrieved from disk. This is slower and can impact performance.
Pages/sec measures how often hard page faults are resolved from disk—high values can indicate memory pressure. If this is high:
- Check Pages Input/sec (can slow applications).
- Check Pages Output/sec (less visible to apps but stresses disk).
- Use Process:Page Faults/sec (e.g., sqlservr) to identify which app is causing high paging.
Page Faults/sec shows both soft and hard faults and reflects system memory activity, not necessarily a performance issue.
Paging File %Usage and Page File %Usage
Windows uses both physical memory and virtual memory (paging file) to manage system resources. When inactive memory is swapped to disk, it can affect performance. Although these memory counters apply to the OS, insufficient virtual memory can still impact SQL Server. Monitoring them helps determine if SQL Server’s memory pressure is due to internal issues or external system-wide constraints.
Buffer Cache Hit Ratio
The buffer cache stores data pages read from disk and is usually the largest part of SQL Server's memory pool. A high buffer cache hit ratio (ideally 99% or more) means most data requests are being served from memory, improving performance. A low ratio may indicate SQL Server is still starting up, memory is insufficient, or queries are not optimized. However, in systems with many ad hoc queries (like reporting environments), low cache hit ratios can be normal and not necessarily a performance issue.
Page Life Expectancy
Page Life Expectancy measures how long data pages stay in SQL Server’s buffer pool without being overwritten. A low value suggests memory pressure, as pages are being replaced quickly. However, low value can be normal in reporting systems or during heavy data loads. There is no universal threshold. Monitoring your system’s baseline is the key. On NUMA systems, use the Buffer Node:Page Life Expectancy counter for node-specific insights.
Checkpoint Pages/Sec
The Checkpoint Pages/sec counter shows how many modified (dirty) pages are written to disk during checkpoint operations. Low values (e.g., under 30/sec) are typical, while higher values may indicate heavy write activity or potential I/O issues. However, if indirect checkpoints are enabled, higher numbers can be normal due to controlled checkpoint behavior, so consider that when monitoring.
Lazy Writes/Sec
The Lazy writes/sec counter measures how often SQL Server's buffer manager writes dirty, aged pages to disk to free memory. Values consistently over 20 may suggest I/O or memory pressure. However, as with other counters, it is important to compare the values against your system's baseline to assess whether they indicate a real problem.
Memory Grants Pending
The Memory Grants Pending counter shows how many processes are waiting for memory grants in SQL Server. A high value typically indicates memory pressure, possibly due to insufficient memory or issues like outdated statistics causing oversized grants. Normally, this value should be 0 on healthy systems. You can also check query-level memory waits using the DMV sys.dm_exec_query_memory_grants.
Target Server Memory (KB) and Total Server Memory (KB)
Target Server Memory (KB) shows how much memory SQL Server aims to use, while Total Server Memory (KB) shows how much it's currently using. If total memory is much lower than the target, it may indicate low memory demand, a low max server memory setting, or that SQL Server is still in its warm-up phase. A high number of free pages or checking sys.dm_os_ring_buffers can help confirm the situation.
Other Memory Monitoring Tools
Apart from Perf Mon, you can also use other tools for collecting memory related metrics.
- DBCC MEMORYSTATUS - It provides a snapshot of current memory allocation. So, you can see where memory is currently allocated.
- DMV sys.dm_os_memory_brokers - Besides the buffer cache, various SQL Server processes also consume memory. You can use this DMV to identify which ones might be contributing to a memory bottleneck.
- DMV sys.dm_os_memory_clerks - Memory clerks manage memory allocation within SQL Server, and monitoring them helps to identify internal memory issues that may affect the procedure cache. To investigate memory usage, you can use DMVs like sys.dm_db_xtp_table_memory_stats for specific in-memory OLTP objects or sys.dm_os_memory_clerks for a broader instance-wide view.
- DMV sys.dm_os_ring_buffers - It provides XML-based access to system notifications and memory-related events, though it is undocumented and subject to change across SQL Server versions. While basic outputs can be read visually, advanced analysis may require XQuery.
- DMV sys.dm_db_xtp_table_memory_stats - You can use this DMV to view the memory allocated and used by in-memory tables and indexes in the current database. Since it only returns object_id, you will need to join with sys.objects to get the corresponding table or index names.
- DMV sys.dm_xtp_system_memory_consumers - This DMV displays internal system structures used by the in-memory engine, which are typically not needed unless troubleshooting memory issues. It helps differentiate between system-level memory usage and memory consumed by loaded data, with key metrics being allocated and used bytes for each structure.
Memory Bottleneck Resolutions
A few of the common resolutions for memory bottlenecks are as follows:
- Optimizing application workload - Identify the memory-intensive queries by capturing all the SQL queries
using Extended Events or use Query Store and then grouping them on the Reads column. The queries with the highest number of logical reads contribute most often to memory stress.
- Allocating more memory to SQL Server - If the memory requirement of SQL Server is more than the max server memory value, then increasing the value will allow the memory pool to grow. Before increasing, ensure that enough physical memory is available in the system.
- Moving in-memory tables back to standard storage - Transferring in-memory table back to disk will release some memory which will resolve your memory pressure. However, you may face query performance issue due to in-memory table.
- Increasing system memory - You can increase RAM size to your workstation to address the memory stress if your workstation actually need it. That will resolve your issue immediately. Remember, if problem lies in problematic queries, then they will acquire all me memory again.
- Changing from a 32-bit to a 64-bit processor - Switching the physical server from a 32-bit processor to a 64-bit processor will radically change the memory management capabilities of SQL Server.
- Compressing data - By data compression, you can put more data in less memory which increase memory throughput. However, it will increase CPU utilization.
- Addressing fragmentation - High level of fragmentation will increase memory utilization. So, address it.
Practical Approach
- Define normal of your workload and monitor the memory utilization trend over the period. In case of any deviation than normal, act accordingly as per above resolution. You can use DBA Dash for monitor all the above counters and defining the normal.
- Run the sp_BlitzCache and identify top resource intensive queries. If your top wait type is RESOURCE_SEMAPHORE then sort by MEMORY GRANT. For details check it.
Final Words
Effective memory management is crucial for maintaining the stability, performance, and scalability of SQL Server environments. As a DBA, understanding how SQL Server allocates, uses, and responds to memory pressure—both internally and externally—is key to diagnosing bottlenecks, optimizing resource usage, and ensuring smooth operations.
By monitoring relevant performance counters, interpreting DMVs, and establishing reliable baselines, you can proactively manage memory behavior across workloads, whether OLTP or analytical. From analyzing buffer cache performance and page life expectancy to identifying memory grants and in-memory object usage, each insight helps shape smarter decisions about hardware, configuration, and query design.
Ultimately, memory management is not a one-time task but an ongoing process. Staying vigilant, continuously tuning, and adapting to evolving workloads will empower you to keep your SQL Server instances healthy, efficient, and ready for growth.
