DBA’s Guide to SQL Server CPU Performance Analysis

CPU performance plays a critical role in the responsiveness and scalability of SQL Server. When CPU resources are overwhelmed, even well-optimized queries and tuned indexes may not deliver expected performance. Understanding how SQL Server utilizes CPU, identifying bottlenecks, and analyzing workload patterns are essential tasks for any DBA aiming to maintain a high-performing environment.

This guide walks you through the fundamentals of CPU behavior in SQL Server, the key metrics to monitor, common causes of CPU pressure, and practical strategies for diagnosing and resolving CPU-related issues.

Figure-1: SQL Server CPU Performance Analysis

CPU Bottleneck

SQL Server is a resource intensive process. It will acquire most of your available system memory and CPU (when required). Since CPU is the center of the server, its bottleneck will just halt the full system. There could be many reasons of CPU pressure. The most common contributors are:

  • High logical reads due to table or index scans because of:
    • Out-of-date statistics
    • Missing indexes
    • Parameter sniffing
    • Poorly designed queries
  • Increase in workload

Checking SQL Server's CPU Load

You check SQL Server's CPU utilization simply from Task Manager's CPU column value for SQL Server Windows NT-64 Bit process. Alternatively, you can also monitor it from perfmon's Process /%User Time and % Privileged Time counter for sqlservr instance.

Figure-2: Monitor SQL Server's CPU Utilization from Task Manager

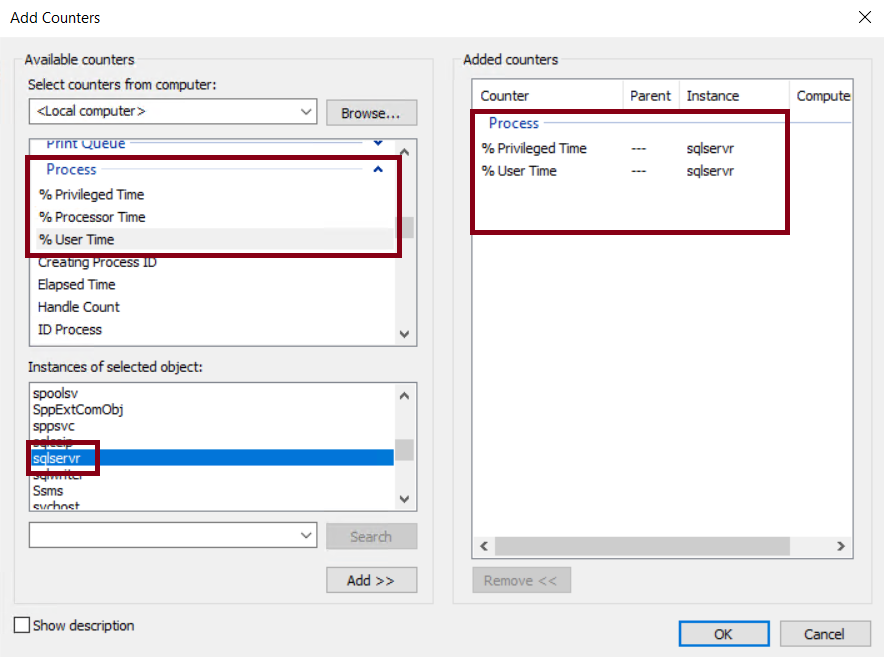

Figure-3: Monitor SQL Server's CPU Utilization from Perfmon

CPU Bottleneck Analysis

When there is any high usages of CPU due to SQLServer, you can analyze it in couple of ways.

  • Perfmon counters
  • DMVs

However, remember that in virtual environment, these metrics may not show you the reality. Because, there could be external pressure/throttling which are not visible within these metrics. In this case, you need to check the host VMware or hypervisor's dashboard.

Another note below guidelines are only for starter rule. You might need to fine tune this according to your workload. Create a baseline for your SQL Server and check the deviation from the normal.

Perfmon Counters

There are couple of perfmon counters which are useful to find out different metrics of SQL Server processor utilization.

% Processor Time

Check best practices related to % Processor.

  • % Processor Time should ideally stay < 80%. Continuous > 90% is as problematic as 100%.
  • If CPU usage is high but disk and network usage are low, focus on reducing CPU load first.
  • If % Processor Time > 85% along with excessive disk I/O, the CPU is likely busy handling disk operations. This will be visible in the % Privileged Time counter. In such cases, it is better to resolve disk bottlenecks first. Note that disk bottlenecks can also result from memory issues, so check for memory bottlenecks too.
  • Monitor CPU usage per processor, not just overall average as SQL Server might not use all CPUs equally. One CPU could be used 100% while others are idle — average can be misleading.
  • In virtualized environments, CPU metrics might not reflect true physical CPU usage. Use VM-specific counters for better insight:
    • For VMware: Use VM Processor (requires VMware Tools).
    • For Hyper-V: Use \Hyper-V Hypervisor Logical Processor(_Total)\% Total Run Time.
% Privileged Time

Windows processes run in User mode (application-level tasks) and Privileged mode (system-level tasks like disk access). On a dedicated SQL Server, % Privileged Time should be within 5–10%. However, the value > 20–25% indicates excessive external processing, possibly due to:

  • High I/O activity
  • Filter drivers (e.g., encryption)
  • Faulty I/O components
  • Outdated drivers
Context Switches/Sec

Processor Queue Length shows the number of threads waiting for CPU time (not currently running).

  • On a low CPU pressure systems, this value is usually 0 or 1.
  • Continuous >2 often means CPU congestion.
  • In multi-CPU systems, a queue length > 2 × number of processors/schedulers may indicate a CPU bottleneck.
  • While % Processor Time shows CPU usage, a consistently high queue length is a stronger sign of CPU overload.
Context Switches/Sec

Context Switches/sec measures how often the CPU switches between threads. A context switch happens when:

  • A thread gives up the CPU voluntarily,
  • A higher-priority thread preempts it, or
  • It switches between user and kernel (privileged) modes.

This is the total for all threads on all processors. High Context Switches/sec values are not always bad as they show the capabilities of CPU speed. Track it over the time and compare with a baseline to detect unusual spikes or performance issues.

Batch Requests/Sec

Batch Requests/sec shows how many queries SQL Server is handling per second. There could be huge low-cost or a few high cost queries. It reflects system workload and processor usage. High numbers (e.g., 10,000/sec) can indicate a busy system, but not necessarily a problem. You should consider other CPU related counters also. Compare with your baseline and try to find out the deviation. A high value is only a concern if other system resources are stressed.

SQL Compilations/Sec

Measures both batch compilations and statement recompilations. Initially, you will observe high value after startup or failover, however, it should stabilize over time. Continuous spikes beyond the baseline can signal performance issues, especially CPU stress. Query compilation is resource-intensive. High values may be expected with ORM tools (e.g., Entity Framework), but still impact performance.

SQL Recompilations/Sec

SQL Recompilations/Sec counts all the recompilations of both batches and statements. A high number of recompilations reflects CPU pressure.

DMVs
  • sys.dm_os_wait_stats - This DMV shows a summary of all the wait times that have happened on the server since it started (or since someone manually reset it). Check wait type CXPACKET, PAGEIOLATCH_ waits*, SOS_SCHEDULER_YIELD, and THREADPOOL. Some combinations of them refers to CPU bottleneck. For details, check my earlier post.
  • sys.dm_os_workers and sys.dm_os_schedulers - These DMVs show number of processes in running state which indicate CPU pressure.

Resolutions of CPU Bottleneck

  • Define the Normal - Define normal of your workload. Monitor the CPU utilization and top wait trend over the period. You can use DBA Dash for monitor all the above counters and defining the normal. In case you see any deviation from normal, take preventive measures.
  • Query Optimization - Find out your top resource intensive queries and optimize them. Use sp_BlitzCache for this purpose. For CXPACKET/CXCONSUMER/LATCH_EX wait type, sort by CPU and by READS.
  • Removing Compiles/Recompiles - Query compilation/recompilation takes extra CPU cycles. Huge number of compilations/recompilations put CPU in stress. Use sp_BlitzCache with @SortOrder = 'duplicates' and @SortOrder = 'recent compilations' for identifying top adhoc queries.
  • Faster Processor - In some cases CPU stress is real. So think of adding new CPU power.
  • Stopping unnecessary software - Use your server dedicated for SQL Server only. Don't use unnecessary software which may produce extra burden on the CPU.

Final Words

CPU performance analysis is vital for a healthy SQL Server. By tracking key counters and understanding normal behavior through baselines, you can spot real issues and avoid overreacting to routine spikes. Do not rely on a single metric—analyze in context, tune with purpose, and keep your server running smoothly under pressure.
