DBA's Guide to SQL Server Network Performance Analysis

In today’s data-driven environments, SQL Server performance is not just about fast queries, efficient indexes — it also heavily depends on how well your database communicates over the network. Whether it is a slow application response, timeout errors, or replication delays, the network often plays an invisible but critical role. As DBAs, we tend to focus on CPU, memory, and disk — yet overlooking network performance can leave significant bottlenecks unresolved.

This guide will walk you through essential network-related metrics, troubleshooting techniques, and tuning tips to ensure your SQL Server operates smoothly. Let’s decode what is happening between your servers — and keep the data flowing efficiently.

Figure-1: Network Performance Analysis

Network Performance Analysis

In SQL Server, the network related performance issue usually occurs due to hardware, drivers, or network infrastructure (like switches or routers). Which are best diagnosed using different network monitoring tools. However, there are some Perfmon Counters which can help you to identify the issues from SQL Server environment.

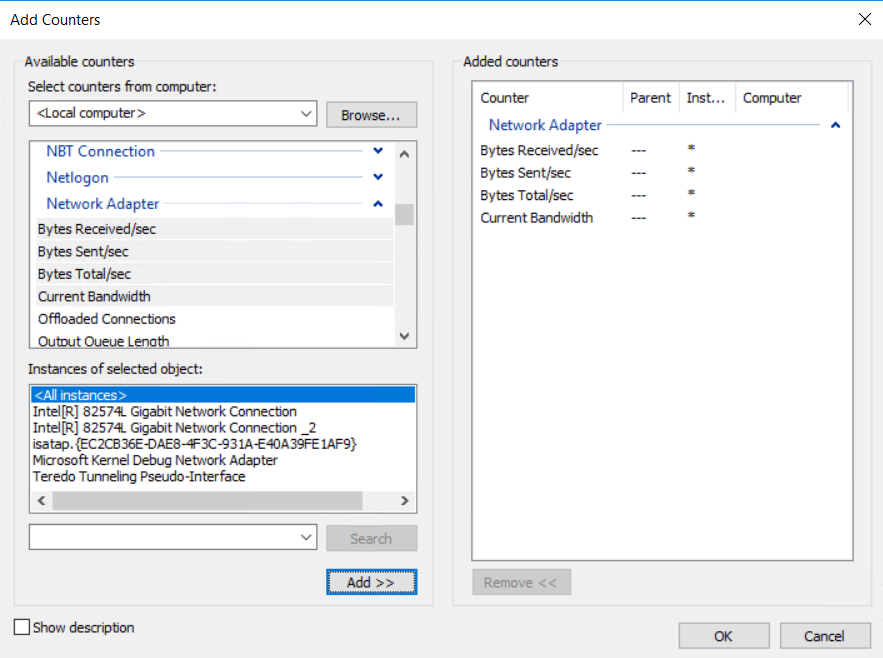

Figure-2: Perfmon Counters

  • Network Interface: Bytes Received/sec - Shows the information receiving rate per second over each network adapter in byte. It includes the data packet frame size. Compare it with your baseline for any deviation. However, < 50% of total bandwidth is ideal.
  • Network Interface: Network Bytes Sent/sec - Similar to Bytes Received/sec, it is just data sending rate over the network including the data packet frame size. For any deviation, check with your baseline.
  • Network Interface: Network Bytes Total/sec - It is the sum of Bytes Received/sec and Bytes Sent/sec. It is the data transfer rate for each network adapter including the data packet frame bytes. Average value is < 50% of NIC capacity, but compare it with baseline. If this number is close to the bandwidth and if processor and memory usage are moderate, then it indicates a problem.
  • Network Interface: Current Bandwidth - Current Bandwidth is the estimation of the current bandwidth of the network interface in bits/sec. For interfaces that do not vary in bandwidth or for those where no accurate estimation can be made, this value is the nominal bandwidth. It should be < 90%.

Network Bottleneck Resolutions

  • Optimize Applications:
    • Use stored procedure instead of SQL query. Put data-intensive business logic into stored procedure. Which will reduce network traffic.
    • Do not use SELECT * or unnecessary columns. Only retrieve the required fields.
    • Use caching at application layer (where applicable) to reduce network calls.
    • Use SET NOCOUNT ON at the top of your query for preventing unnecessary DONEINPROC messages to minimize network traffic.
  • Align your network components (cables/switches/network configurations/NICs/connectors/bandwidth) to support your business need.

Final Words

While SQL Server network performance issues are relatively uncommon in well-configured OLTP environments, they can still cause significant bottlenecks when they arise. Most problems trace back to hardware, drivers, or network infrastructure. As a DBA, your role is to ensure SQL Server is optimized for efficient data transmission, collaborate with network teams to identify and resolve anomalies. A proactive approach helps maintain smooth, responsive communication between SQL Server and its clients.
